Manufactured in Ludhiana, Punjab
Control arm bushes built around your specification
Maurflex manufactures control arm bushes and rubber-to-metal bonded suspension components for Indian and international buyers. Backed by Maurya Rubber Products' 25+ years of rubber-component manufacturing experience, we review drawings, samples and application requirements for OEM and aftermarket enquiries.
Choose a control arm rubber bushing by its mounting position, dimensions, sleeve arrangement and approved material specification. Send your part reference and requirements for a component-specific review and quotation.
Identify the right component
Control arm bushings for front, rear and lower arm positions
The required bush depends on the suspension assembly and its mounting location. These positions guide the enquiry; they do not establish interchangeability between parts.
Front control arm bushes
State the vehicle or equipment reference and the exact front-arm mounting position. Include the original part number or drawing where available.
Rear control arm bushes
Identify the rear suspension arm and mounting position. Confirm sleeve lengths, bush profile and the assembly reference for review.
Lower control arm bushes
Specify which lower-arm mounting needs the bush. Similar appearance or matching outside diameter alone does not confirm suitability.
Drawing-led manufacturing
Specify your control arm rubber bushing
A clear specification helps us review the component, tooling and quotation requirements. Provide the following information wherever available.
| Detail | Information for review |
|---|---|
| Dimensions & profile | Inner diameter, outer diameter, overall length, flanges, profile and critical tolerances. |
| Metal sleeves | Inner and outer sleeve lengths, material, wall thickness, finish and insert alignment. |
| Rubber requirements | Specified rubber grade, hardness, operating conditions and relevant material requirements. |
| Application & fitment | Vehicle or equipment reference, arm position, original part number and drawing revision. |
| Quality requirements | Inspection plan, required tests, sampling, acceptance criteria and documentation. |
| Supply requirements | Quantity, sample requirements, packaging, delivery destination and requested schedule. |
Dimensions, materials, hardness and fitment are confirmed for the individual component against the agreed specification.

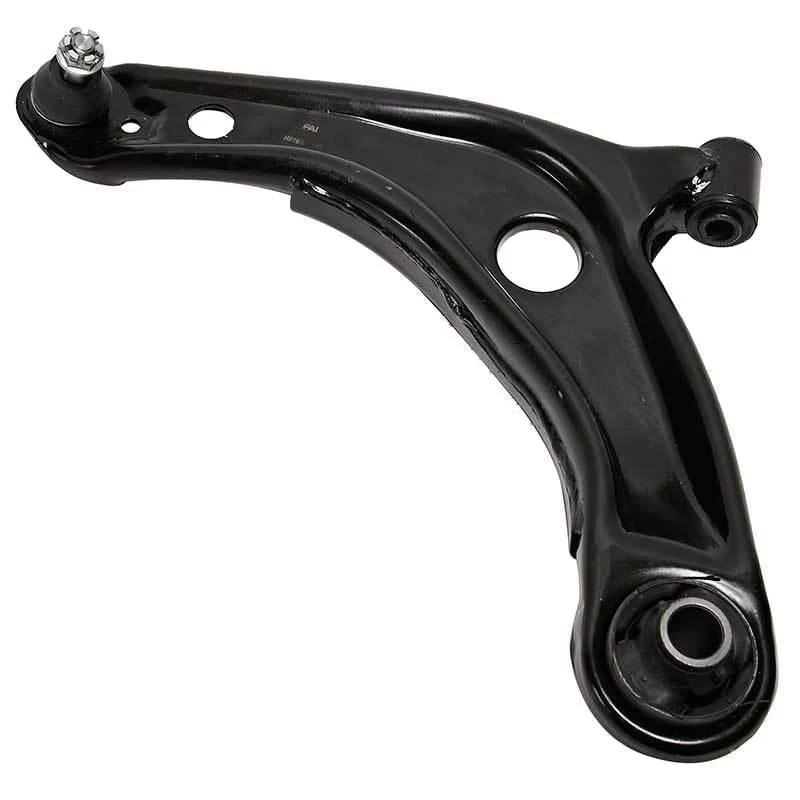

Lower control arm and bushing selection
See the assembly. Specify the bush.
The assembly photograph helps identify the rubber bush mounting points. Record which location needs the component, then compare its drawing, dimensions and sleeve arrangement.
For a replacement enquiry, send the original part reference and sample photographs. For a drawing-based project, include the drawing number, revision and acceptance requirements.
Quality control
Inspection and testing matched to the component
Maurflex assesses dimensions, rubber properties, bonding quality and visible condition against approved drawings and the agreed inspection plan. The required tests, methods, loads, sampling and acceptance limits depend on the design and order requirements.
Dimensions & sleeve alignment
Review critical sizes, insert position, surface condition and workmanship against the approved drawing.
Rubber hardness & material checks
Review specified hardness and material requirements for the intended operating conditions.
Load-deflection evaluation
Where specified, assess movement under a defined load and direction against the agreed stiffness or deflection criteria.
Bond integrity & pull-out testing
Where applicable, evaluate bonding and insert retention using the defined fixture, direction and acceptance limits.
Proof-load testing
Apply the specified proof load where required and assess the agreed criteria for damage or permanent change.
Endurance evaluation
Where required, assess the component over the specified loading cycle and review the agreed performance criteria.
R&D and custom development
From your drawing or sample to a reviewed manufacturing plan
Our development discussion brings the application, geometry, rubber requirements, metal preparation, bonding system and moulding requirements together.
Application review
Define the requirement
Review the mounting position, movement, operating conditions, part reference and critical dimensions.
Component development
Review materials & tooling
Discuss sleeve details, rubber requirements, tolerances, tooling and sample evaluation criteria.
Production planning
Agree the acceptance plan
Confirm sample approval requirements, inspection, identification and order documentation before production planning.
Inside manufacturing
Rubber bush moulding at Maurflex
See rubber bush components in a mould and a finished rubber-to-metal bonded bush in this short factory clip.
The process view supports the product information. The specification and inspection plan define the requirements for your own component.
India and international buyers
Competitive quotations. Clear supply planning.
We welcome enquiries from manufacturers, importers, distributors, workshops and fleet purchasing teams. Quotations consider the component design, tooling, materials, inspection requirements and quantity.
Share your delivery destination and requested schedule so production, packaging, identification, documentation and dispatch requirements can be reviewed for the order. Confirmed requirements provide the basis for delivery planning.
Buyer questions
Selecting and sourcing control arm bushes
How do I identify the correct control arm bush?
Use the part number or approved drawing, mounting position and complete dimensions together. Include sleeve lengths and bush profile; appearance or a single matching dimension does not establish fitment.
Can you review a sample for a custom control arm rubber bushing?
Yes. Send a drawing or clear sample photographs with available measurements, material requirements, intended application and quantity. Sample evaluation, tooling and approval requirements are discussed for the component.
Which tests should I specify?
Share your drawing, performance requirements and inspection standard. Hardness, dimensional, bond, load-deflection, pull-out, proof-load and endurance requirements are agreed where relevant to the design.
What should an export enquiry include?
Provide the part reference, drawing or sample, quantity, delivery country and requested schedule. Include required inspection reports, identification, packaging and documentation so the quotation can address the order.
Related selection guides
Understand the assembly and identify your bush
Explore how control arm bushings function, the signs of wear and the information needed to select a lower-arm component.
Start with your specification
Request your control arm bush quotation
Send the component details to Maurflex for a review of manufacturing and supply requirements.
mauryarubber@yahoo.com
+91 9815405344
Ludhiana, Punjab, India
Include with your enquiry
- Drawing, sample or part number
- Mounting position and critical dimensions
- Material and inspection requirements
- Quantity and delivery destination
